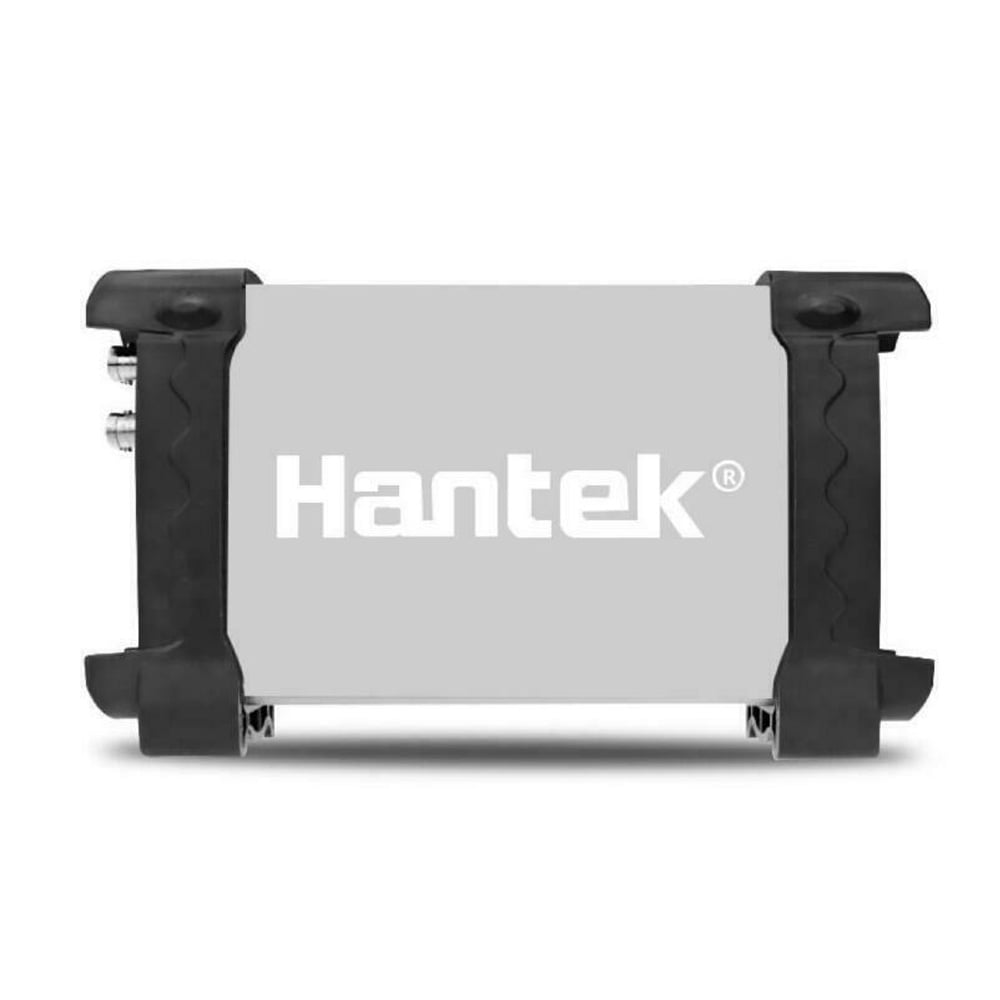

OUSITAID 6022BE Storage 48MSa/s 20MHz 2CH FFT PC Based Digital Oscilloscope USB

<p>Features:</p> <p>1. Small size, easy to carry.</p> <p>2. High refresh rate and high sampling rate.</p> <p>3. More than 20 kinds of automatic measurement functions,built-in multiple languages can be operated, convenient to measure.</p> <p>4. Two channels, both economical and high performance.</p> <p>5. The shell adopts anodized aluminum, which is not only beautiful, but also greatly improves the surface hardness of aluminum alloy, with good heat resistance and abrasion resistance.</p> <p>6. High performance, 48MS/s real-time sampling, 20MHz Bandwidth.</p> <p>7. Operating System: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA, Windows 8.</p> <p>8. One computer can connect many DSO, extend channel easily.</p> <p><br></p> <p>Specification:</p> <p>Channel: 2 Channels</p> <p>Band Width: 20MHZ</p> <p>Record Length: 10-60K/CH</p> <p>Input Impandence: 1MΩ 25pF</p> <p>Max Sample Rate: 48MS/s</p> <p>Vertical Resolution: 8 Bit</p> <p>Gain Range: 20mV-5V, 8Steps</p> <p>DC Accuracy: ±3%</p> <p>Timebase Range: 1ns-9000s, 39 Steps</p> <p>Input Protection: Diode clamping</p> <p>Trigger Mode: Auto, Normal and Single</p> <p>Trigger Type: Rising edge, falling edge</p> <p>Pre/Post Trigger: 0-100%</p> <p>Waveform Display: Port/line, waveform average, persistence, intensity.</p> <p>Vertical Mode: CH1, CH2, Dual, ADD</p> <p>Compensation Range: 15~45pF</p> <p>Operation Environment: 0~50°C,0~80%RH</p> <p>Storage Environment: -20~60°C,0~90%RH</p> <p>Product Weight: 716 G / 25.26 Ounces</p> <p>Product Dimensions (L*W*H): 230*170*75 MM / 9.06*6.69*2.95 Inches</p> <p><br></p> <p>Package Including:</p> <p>1 x Virtual Oscilloscope</p> <p>1 x USB Data Cable</p> <p>1 x Oscilloscope Probe</p> <p>1 x Plastic Parts</p>

• Small size, easy to carry.

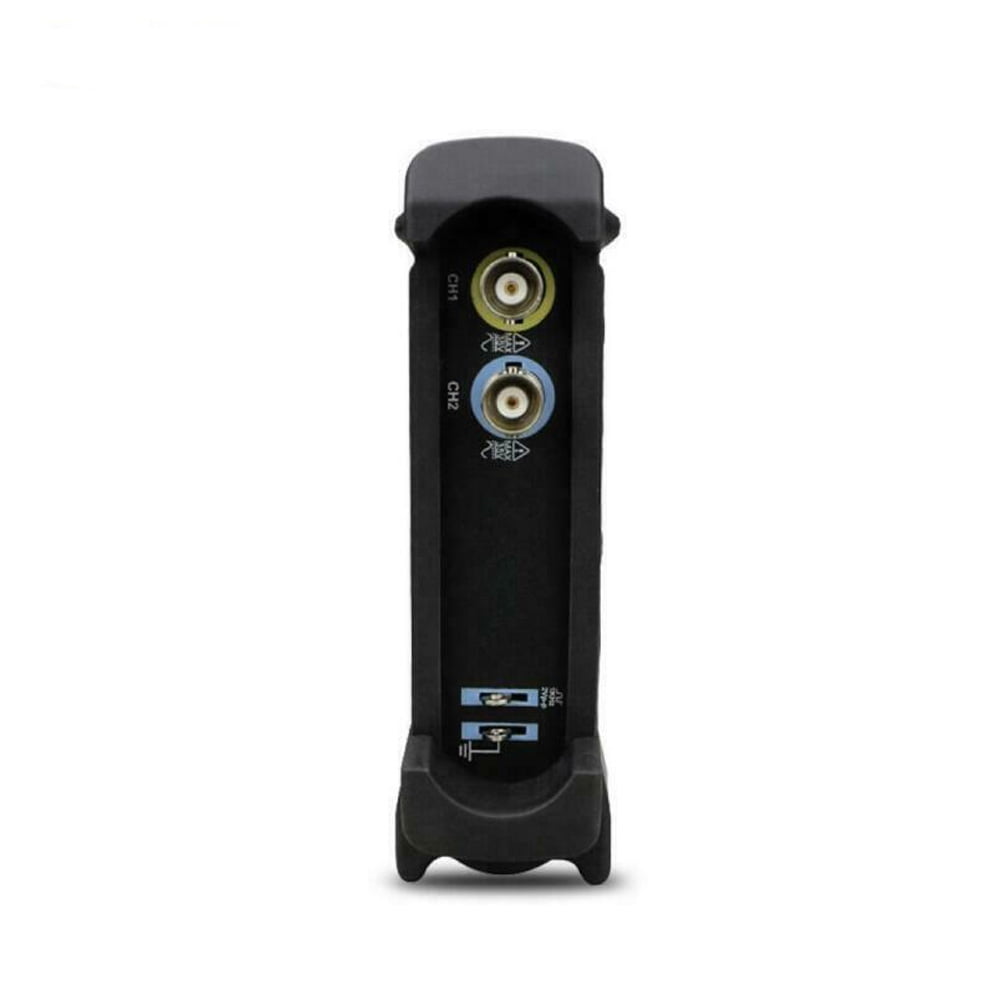

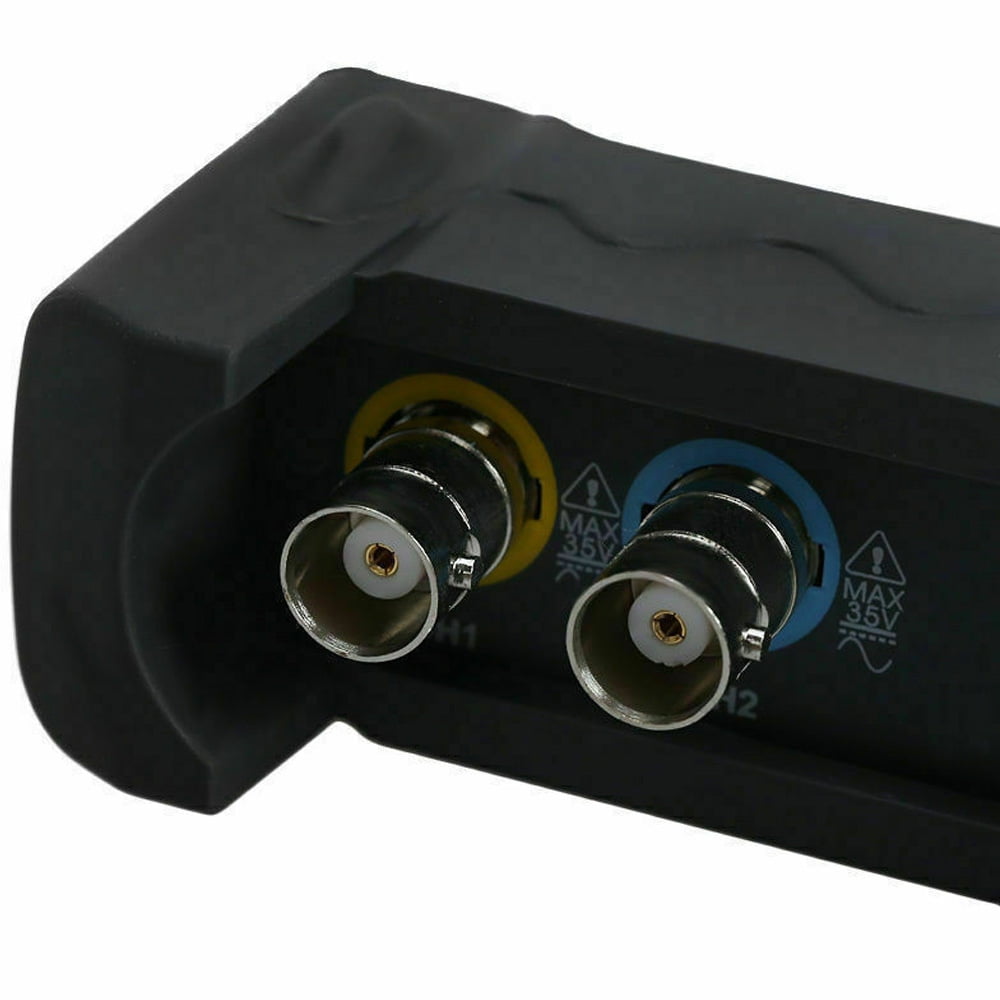

• Two channels, both economical and high performance.
• High performance, 48MS/s real-time sampling, 20MHz Bandwidth.

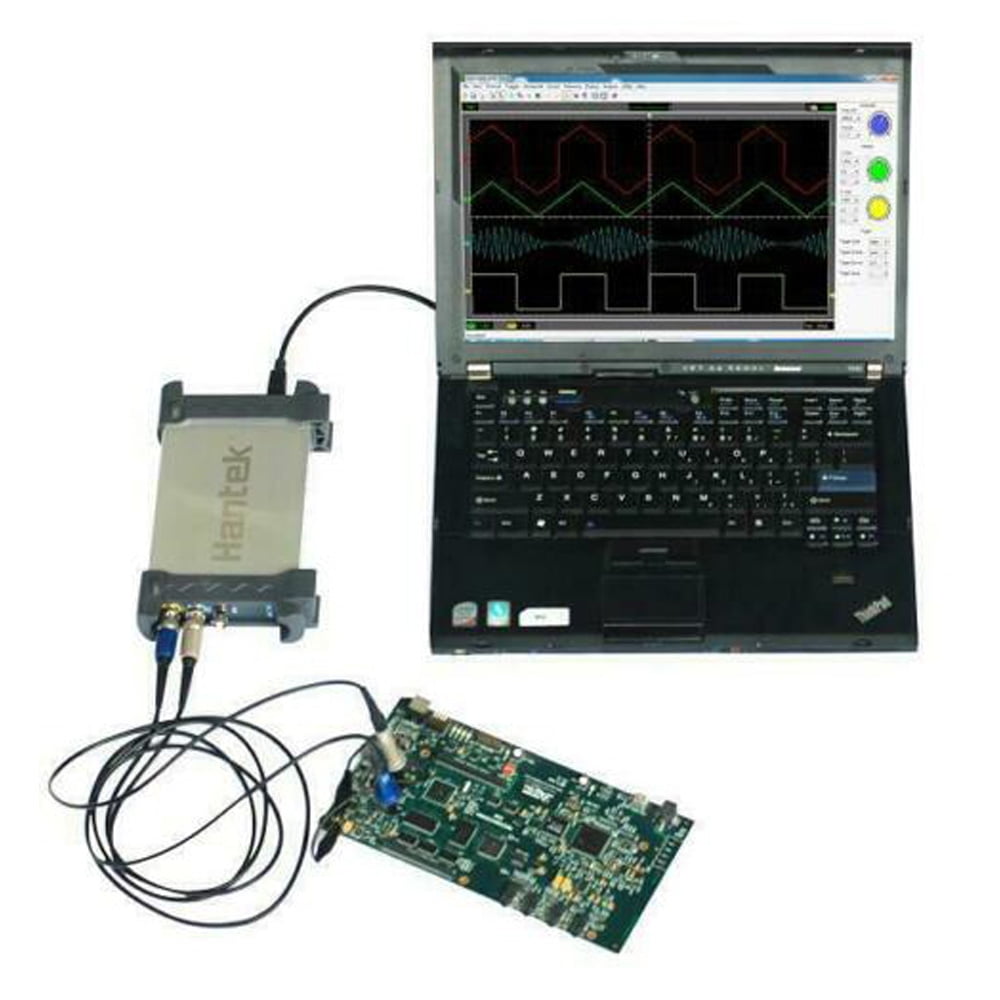

• One computer can connect many DSO, extend channel easily.
