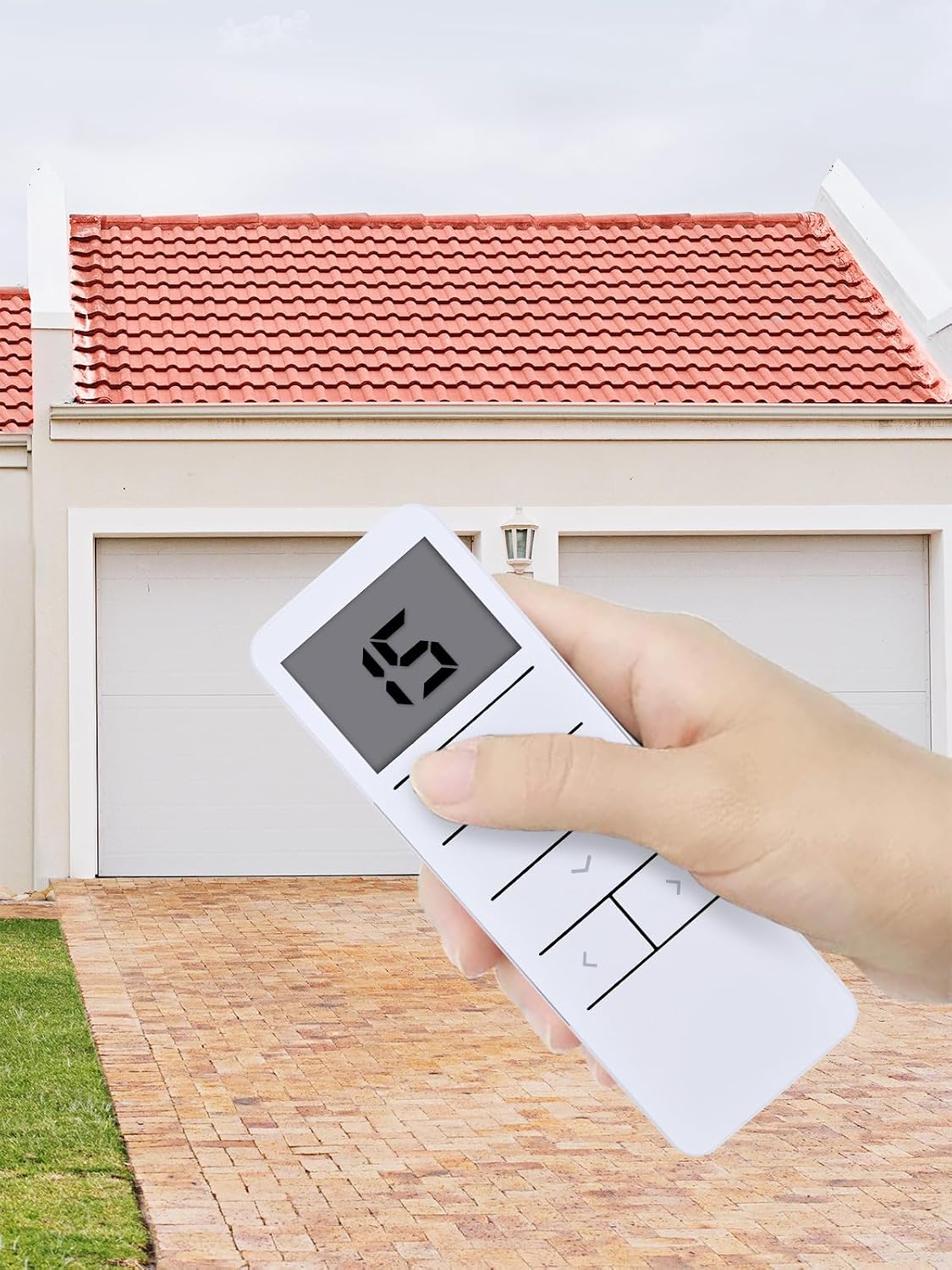

Replacement Remote Controller for DOOYA DD2702H Motorized Curtains, Electric Roller Blinds and Shades 433MHz 15-Channel Transmitter

Snrigw Replacement Remote Controller for DOOYA DD2702H Motorized Curtains, Electric Roller Blinds and Shades 433MHz 15-Channel Transmitter

• Compatibility:This is the replacement remote control for the DD2702H 433MHz transmitter. Designed as a direct, plug-and-play replacement, it ensures full compatibility with electric curtain motors, roller blinds, and shades that operate on the 433MHz frequency and are programmed to the DD2702H remote. Pair with contronller:Power off→(T>10s)Power on→(within 30s)P2 Press×1→P2 Press×1→UP/DOWN Press×1→(Di×6)Setting up Add a new transmetter:Power off→(T>10s)Power on→(within 30s)P2 Press×1→P2 Press×1
• Rrmotecontrol instruction manual A.Engineering motor setting method The engineering motor is universal. There is a button near the signal line. You can press the "setting button" to set the engineering motor. 1.Long press the motor setting button; the green light turns on/flashes; release 2.Press the P2 button on the back of the remote control several times (you need to open the back cover first), and the motor indicator light will flash, indicating that the pairing is in progress. 3.Try to use the remote control to ascend and descend, it works normally
• Rrmotecontrol instruction manual B.Roller shutter machine setting method 1.After power off and power on again, the motor makes a beeping sound. 2.Open the back cover of the remote control, press the P2 button once,the motor will make a "beep" sound twice, then press the P2 button once again, the motor will make a "beep" sound 3.Press the "Up" button on the front of the remote control. The motor will beep 5 times, indicating successful pairing
• Matchable R tubular motor setting up: (During the settings,the time between two operation must be shorter than 4s,otherwise it will quit the setting) 1.Power on(Sound from motor hear long soun→P2×1(Beep once)→P2×1(Beep once)→UP×1(Run or beep for hint)/Down×1(Run or beep for hint)→OK(Set up is ok.The up button control the motor clockwise) Not:Delete all the datas of the motor and the new emitter has been programmed.
• The valid channels selection:(P1+button+P1-button)×1→(The screen will display C)P1+button+P1-button,hold on→(The screen will display 1s)→Press P1+button or P1-button,selecting the channel(channl 1 to channel 1s)you need →Stop×1→(The screen will display o)OK(setting is ok) Not:In the setting state,press the up or down button you can quit quickly,if you want to change the valid channels,reset it.
